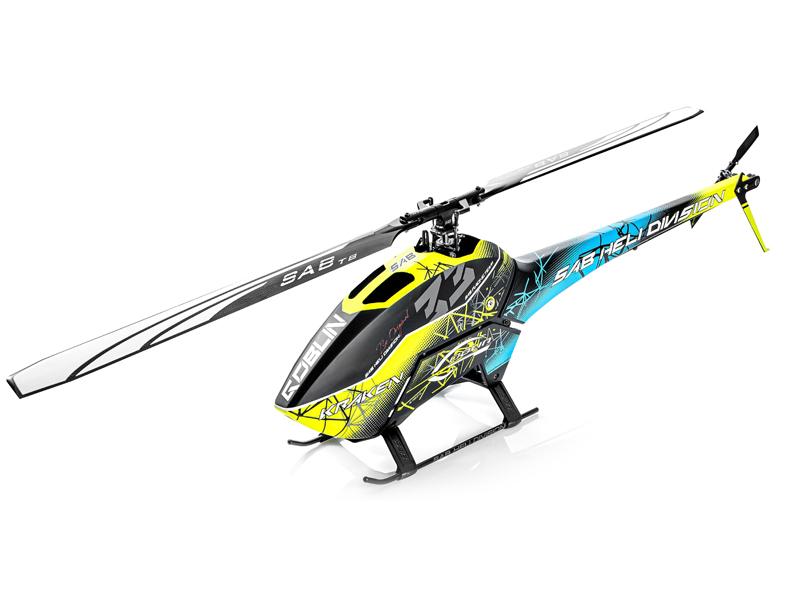

SAB Goblin Kraken 580 Yellow/Blue
Quick View
DOWN LOAD MANUAL : HERE The all new and innovative mid size Kraken! It features very similar design aspects with its bigger brother, the Kraken 700, all in 580 sized...Vendor: SAB Heli Division
SKU: SG580
DOWN LOAD MANUAL : HERE
The all new and innovative mid size Kraken! It features very similar design aspects with its bigger brother, the Kraken 700, all in 580 sized package!
Main and tail blades included.
Main and tail blades included.
To be able to use with fullsize cyclic servo, you need to order these parts :
FEATURES
- This is the first mid-size Goblin to accept up to 600mm rotor blades!
- The Kraken 580 works amazingly well with mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.The parts can already be ordered with KITS to have it for release date.

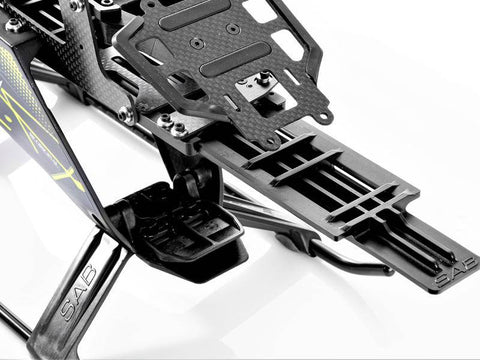

- The Kraken 580 utilizes the same battery trays as the Kraken 700
- Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft).
u00a0
TECHNICAL SPECITICATIONS
- AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )
- Main blade length: 550mm to 600mm
- Tail blade length: 95 to 105 mm
- Main rotor diameter: 1270 mm (with 570 mm blades included)

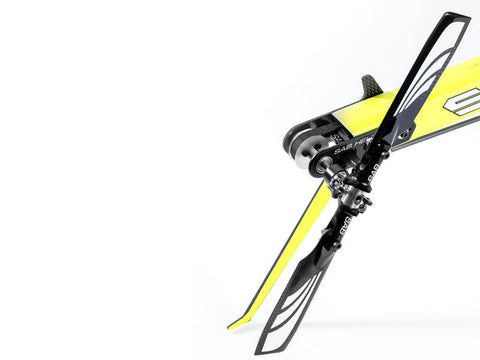

- Tail rotor diameter: 260 mm (with 95 mm tail blades included)
- Cyclic Servos: mini size 35 mm (standard size 40mm option )
- Tail Servo: standard size 40mm.
- Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
- Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
- Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv
- Typical speed controller: 6S 120-140 A, 12S 100-130A
- Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.
Suggested Configuration :
- Budget Set up
ESC : HobbyWing 120LV / HobbyWing130HV /u00a0Tribunus 120LV / Tribunus 130HV
Motor : Scorpion 4025-1100KV / Scorpion 4025-520KVu00a0
Cyclic Servo : Torq CL1208 / KST X15-1208 / Torq BLS2208 / KST BLS815V2 / KST BLS915 V2
Tail Servo : Torq BLS0704T / KST BLS805X
u00a0
-u00a0Fancyu00a0Set up
ESC :u00a0Kolibri 140LVu00a0/ Kolibri 140HV / YGE 135LVT / YGE 135HVT
Motor :u00a0 Pyro 650-103L / Pyro 650-53L /u00a0Xnova 4025-1120KV /u00a0Xnova 4025-560KV
Cyclic Servo :u00a0Xpertu00a0MM-3301-HV / Xpert KD1
Tail Servo :u00a0Xpert KD1Tu00a0
